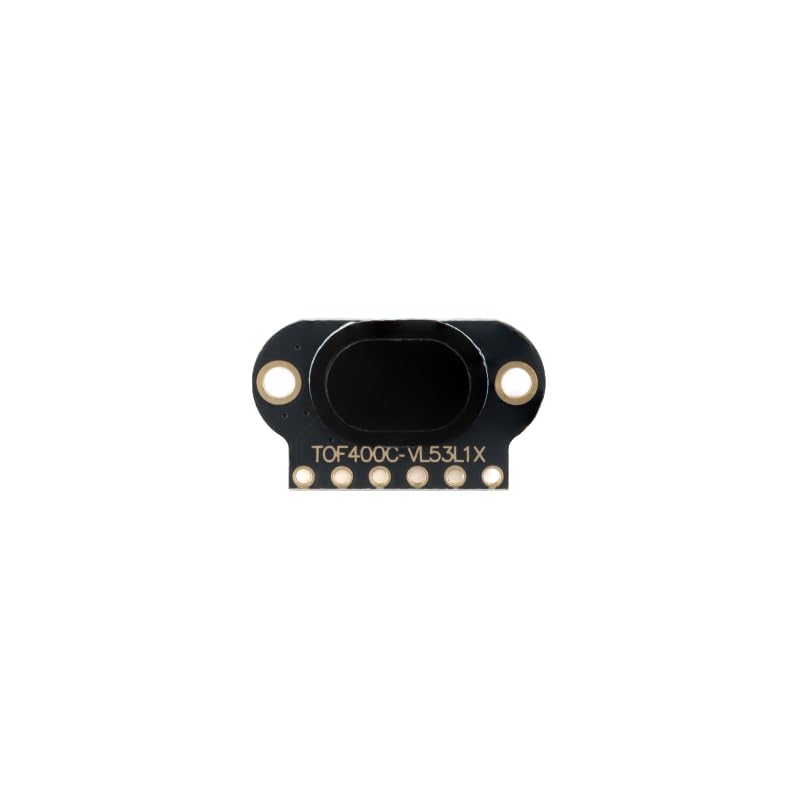

TOF400C-VL53L1X Infrared Ranging Sensor Module, 4M Distance Measurement

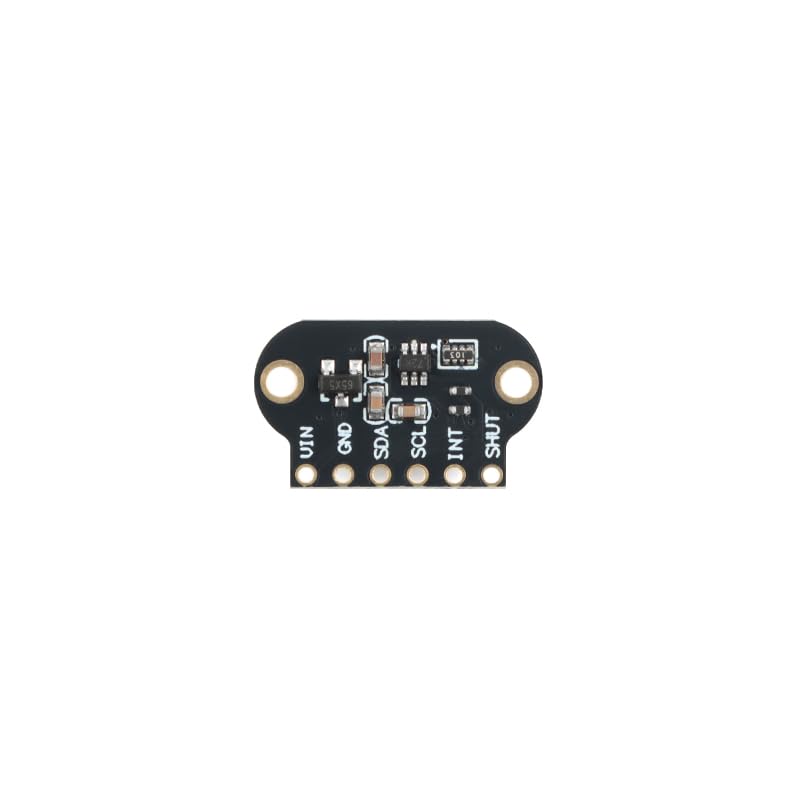

Product parameters wide voltage input :4.5V-36V DC (module built-in DC-DC step-down circuit, output 3.3V) Logic compatibility of :3.3V/5V TTL(I²C pin withstand voltage 5V) Ranging principle of :940nm vertical cavity surface emitting laser (VCSEL) + time of flight (ToF) technology The effective ranging range of : in short pitch mode: 0-1.3m(± 1mm accuracy) in long pitch mode: 0.5-4m(± 5mm accuracy) Resolution : 0.25mm (high-precision mode) sampling rate of :50Hz (full range continuous measurement) of field of view of: 27 ° × 7 ° (small objects can be identified) communication interface :I²C(400kHz, address 0x 29 fixed) power consumption : of working mode of: 25mA (typical) in sleep mode of: 5μA Operating temperature :-30°C to +85°C (industrial wide temperature range) protection level of :IP54 (dust and splash) Anti-light interference :>100kLux ambient light suppression (support outdoor strong light) Product main pin function IN + : DC input positive (4.5V-36V DC), connected to wide voltage power supply positive (module built-in MP1584EN step-down IC) GND: power supply ground, common ground with the system (wire diameter ≥ 0.5mm ²) VCC: 3.3V logic output (maximum 100mA, can power external circuits) SCL: of I²C clock line, external 2.2kΩ pull-up resistor to 3.3V/5V SDA: of I²C data line, external 2.2kΩ pull-up resistor is required XSHUT: hardware reset/enable GPIO1: of interrupt output

• 【High-Precision Laser Ranging Sensor for Industrial Applications】 The TOF400C-VL53L1X is a high-precision laser ranging sensor that delivers accurate measurements from 0.05m to 4m with ±1mm accuracy in short-range mode and ±5mm in long-range mode. Powered by 940nm VCSEL and ToF technology, it ensures reliable performance in both indoor and outdoor s. Suitable for AGV navigation, automated doors, and industrial automation systems.
• 【Wide Voltage Input & Low Power Consumption】 This Reliable sensor supports a wide voltage input range of 4.5V–36V DC, making it compatible with various power sources. It operates at only 25mA in active mode and drops to 5µA in sleep mode, ensuring energy efficiency without compromising performance. Suitable for battery-powered or low-power applications.
• 【Advanced Anti-Light Interference & High Resolution】 With >100kLux ambient light suppression, the TOF400C-VL53L1X performs reliably even under strong sunlight. Its 0.25mm resolution and 50Hz sampling rate allow precise detection of small objects as small as 2mm x 2mm. This makes it Suitable for robotic sensing, object detection, and real-time monitoring systems.
• 【Easy Integration with I²C Interface】 The module uses a standard I²C digital interface (default address 0x52) and supports multi-device cascade, allowing seamless integration into complex systems. With configurable GPIO interrupt outputs and adjustable calibration settings, it’s easy to customize for specific applications like robotic navigation or smart automation projects.
• 【Advanced Anti-Interference Features & Customizable Settings】 Equipped with anti-light mode and software compensation for black objects, this sensor minimizes measurement errors caused by ambient light or reflective surfaces. It also supports address modification and time-sharing start-up for multiple modules, making it a flexible and reliable choice for developers and engineers working on advanced sensing solutions.
