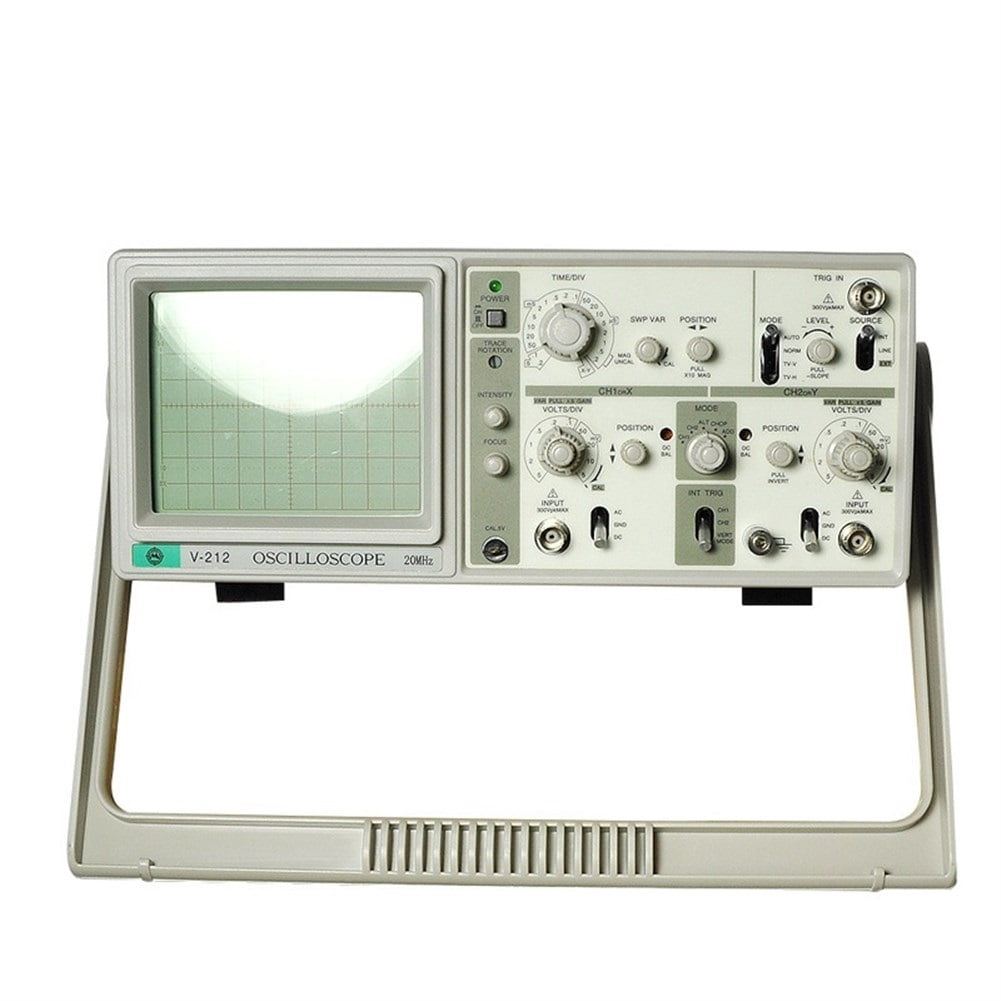

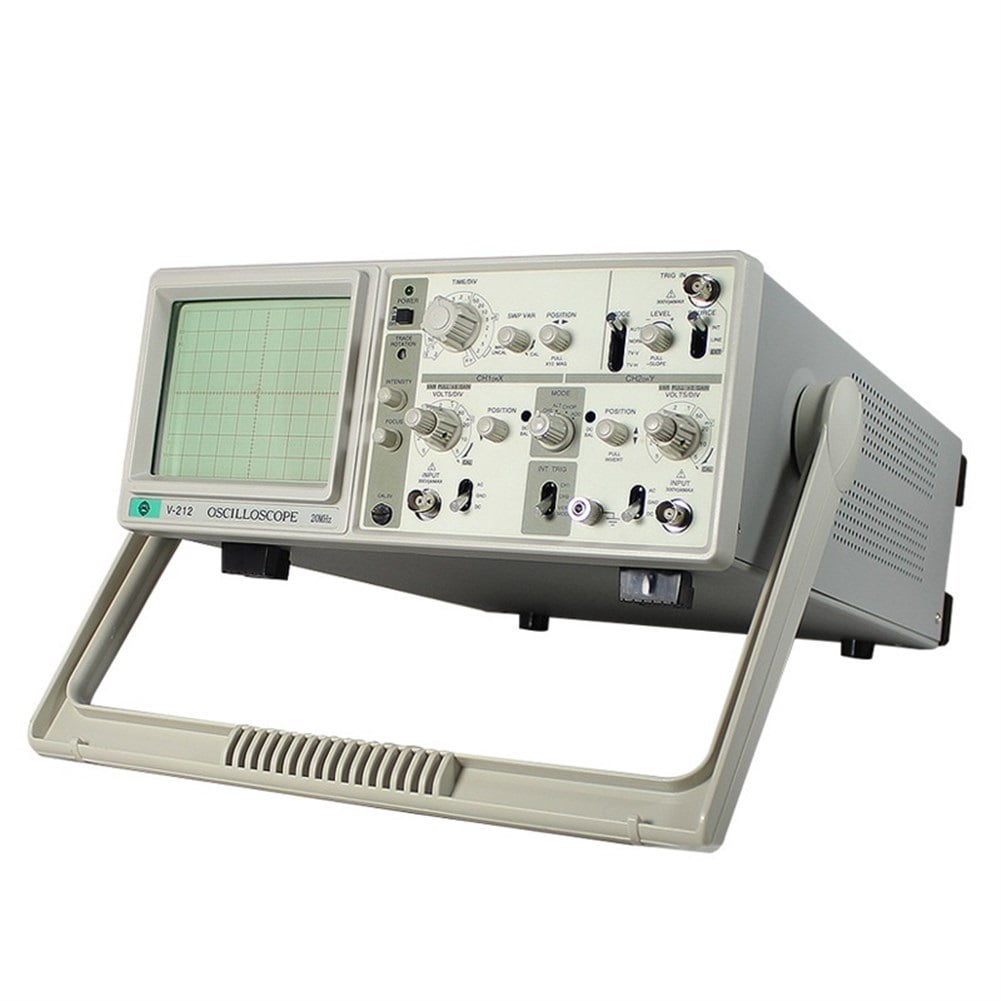

MCH V-212 Dual Trace Analog Oscilloscope 20MHz 6 Inch Large Screen Dual Channels

<p>Type: Analog Oscilloscope</p><p>Bandwidth: 20 (MHz)</p><p>Dimensions: 310(W)*130(H)*370(D)*(mm)</p><p>Use / application area: Manufacturers, research institutes, testing centers, education, automobile maintenance and repair of electronic products.</p>

• Type: Analog Oscilloscope
• Model: V-212
• Number of channels: 2
• Bandwidth: 20 (MHz)

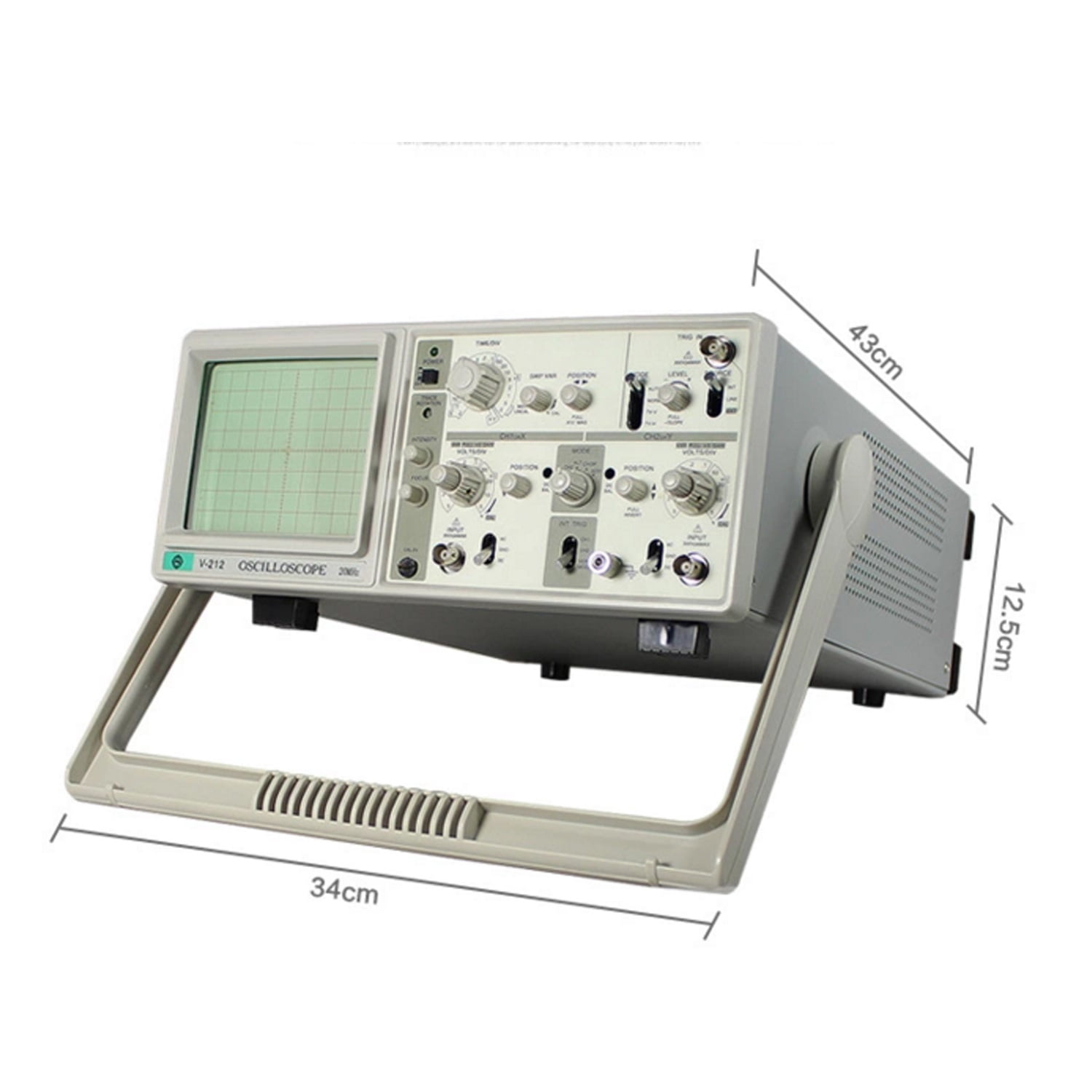

• Dimensions: 310(W)*130(H)*370(D)*(mm)
• Weight: 8.5 (kg)
• ● DC-20MHz/DC-30MHz
• ● Double pass / double track, X-Y mode
• ● 6-inch large screen
• ● High sensitivity trigger, up to 1mV / grid
• ● The CH1 channel has a segmentation amplification function that is clearer than a general oscilloscope.
• ● TV sync separation circuit can observe stable TV signal
• ● Trigger mode: automatic, normal, TV, TV line
• ● Vertical mode: CH1, CH2, alternate, intermittent, add
• ● X-x10, Y-x5
• ● Positive and negative phase reversal
• ● CH1 synchronous output
• ● Input AC voltage 220V (110V optional)
• Packing list
• Host × 1, power cord × 1, probe × 2, manual × 1
• Use / application area
• Manufacturers, research institutes, testing centers, education, automobile maintenance and repair of electronic products.
